LOW Tension Control Cabinet



The Low Tenson Control Cabinet, also called: PAKITA Cabinets", are perfectly fit for for the installation of all our PAKITA siren types. The components of our cabinets are from SIEMENS brand.

We produce 5 types of Control cabinets:

    1 - A Basic Cabinet (On/Off) P400 - Optional Timer available for intermittence.



    2 - An NA Cabinet P500 (National Alert Cycle delivered through the LOGO program).

    3 - An NA Cabinet P500 + GSM (National Alert and automatic remote setting off from a mobile phone).

         Available Option: " Automatic precautionary Information" using a battery-operated control module.

    4 - AN P600 cabinet (National Alert Cycle delivered thanks to the LOGO programmer), Automatic monthly test program, GSM mobile communication, Operational State Information in the event of a power failure.



    5 - AN P600PLUS or P600+ cabinet (National Alert Cycle delivered thanks to the LOGO programmer), Automatic monthly test program, GSM mobile communication, Operational State Information in case of power failure. See the advantages of the P600+ over the P600 below.

Additional Options:

    - ON/OFF 400V Control Box

    - LED Lighting positionned inside of the cabinet at the top.

    - A plug 220V on DIN rail.

    - Programming of Alert specific cycles (LOGO) (Other modulated sounds).

    - Connection to a generator set

    - Remote Wired Control Box (Photo here below).

                                                                   --------------------------

Boitier Rotatif 400V (version 2016).jpg

 • We offer a Professional Training Program to master the use of Control Cabinets.

Price per hour or half day. Please, contact us.

1 - A Basic Cabinet (On/Off) P400 - Optional Timer available for intermittent signal.
Dimensions: 400 x 300 x 210 mm (H x L x D)

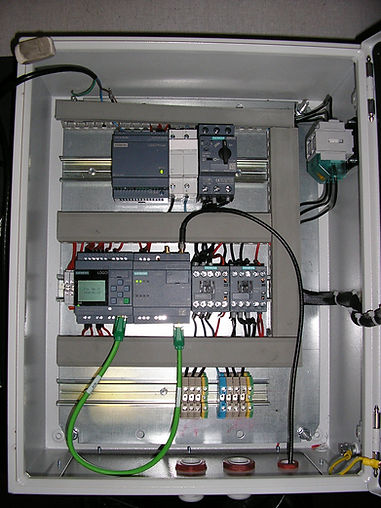

P400 Control Cabinet with Pakita BB Sirens

2 - An NA Cabinet P500 (National Alert Cycle delivered through the LOGO program).
Dimensions: 500 x 400 x 210 mm (H x L x D)

3 - An NA Cabinet P500 + GSM (National Alert and automatic remote setting off from a mobile phone).

     Available Option: " Automatic precautionary Information" using a battery-operated control module.

Dimensions: 500 x 400 x 210 mm (H x L x D)

PAKITA SIRENS INNOVATIONS:

New options for the P500 + Gsm (P500 2019):



1) Announcement by SMS of the monthly test

2) Announcement by SMS of an opening of the cabinet (maintenance or break-in?)

3) announces by SMS that the circuit-breaker has tripped (disconnected) in the event of an electrical or mechanical problem.

4 - An NA P600 cabinet (National Alert Cycle delivered thanks to the LOGO programmer), Automatic monthly test program, GSM mobile communication, Operational State Information in the event of a power failure.

Dimensions: 600 x 400 x 210 mm (H x L x D)

5 - An NA P600PLUS cabinet (National Alert Cycle delivered thanks to the LOGO programmer), Automatic monthly test program, GSM mobile communication, Operational State Information in the event of a power failure.

The Advantages of the P600PLUS or P600+


More (+) interaction between people and the alert system



- Sending coded SMS with acknowledgment receipt and in addition (+) sending instructions to perform

- In addition (+), receiving SMS in case of a manually triggered alert or alert termination signals

- In addition (+), receiving SMS messages for activation on the electricity supply network

- In addition (+), receiving SMS messages in the event of a power failure

- In addition (+), receiving SMS messages for the monthly test operation (in automatic or manual mode)

- In addition (+), receiving SMS messages from a malfunction of the alert system

- In addition (+), SMS reception for weekly test, engine lubrication system - And (+) SMS reception when the electrical cabinet door is opened.



Other OPTIONS:

- installation of a 16A grounded socket (for maintenance)

- installation of LED lighting (for maintenance)

Additional Option:
Remote Wired Control Box

For more information, contact: Moteurs Fox.
